X-Axis Assembly - H2 Series

Overview

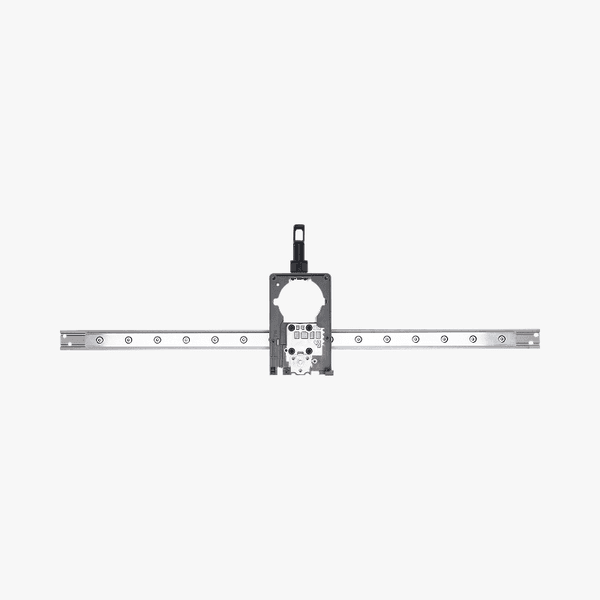

The X-Axis Assembly consists of the linear rail, lifting bracket, and the toolhead middle frame, and it controls the toolhead's movement along the X-axis.

Installation

Learn more about H2D X-Axis Assembly on Bambu Lab Wiki.

Learn more about H2S X-Axis Assembly on Bambu Lab Wiki.

In the Box

For H2D and H2D Laser

- X-Axis Assembly*1
- Hex Screwdriver *1
- H2.0 Hex Wrench*1
- M3-6 Screw*4
- BT2-5 Screw*2
- BT3-8 Screw*4
- M3-8 Screw*6

For H2S and H2S Laser

- X-Axis Assembly*1
- Screwdriver*1
- Screws Kit

Compatibility

H2D and H2D Laser

H2S and H2S Laser
