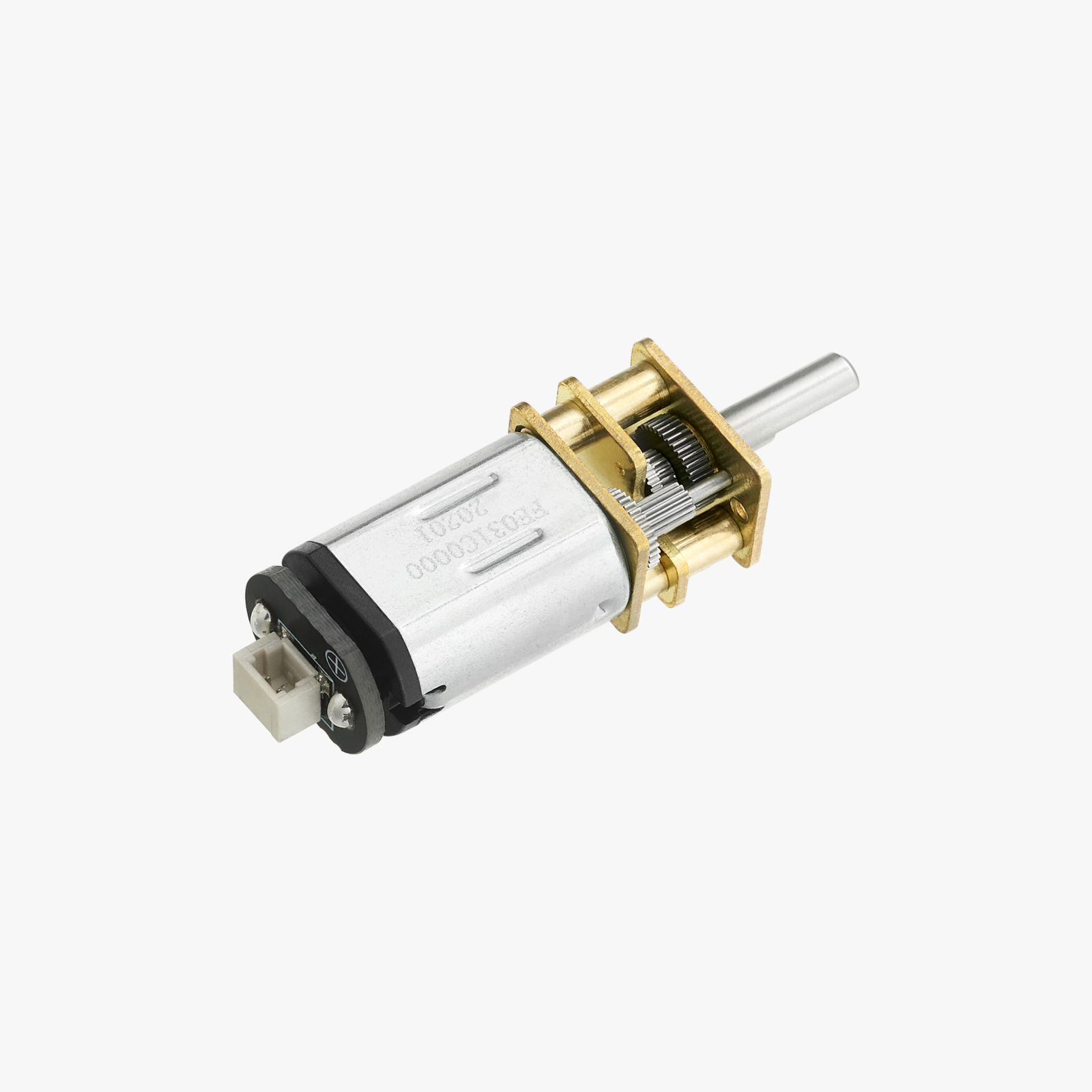

N20 Reduction Gear Motor

$8.99 CAD

GST, PST, HST, QST excluded. Actual tax rate varies by region

Save
Code:
Copy
Size:
Quantity:
$8.99 CAD

Order Info
  • Order will be shipped out from CA warehouse in 1-3 business days once being processed.
  • Free shipping on orders over CAD $60.



Socket Head Cap Machine Screws (SHCS) Socket Head Cap Machine Screws (SHCS)



Product Specifications

Product ID
Input
Rated Voltage

(V)

Operating Voltage

(V)

Torque

(G*CM)

No Load Speed

(RPM)

Rotating Direction
LA002 SH1.0-2P 6V 3V ~ 7V 852.6 150 CW
LA003 SH1.0-2P 6V 3V ~ 7V 350 400 CW
LA004 SH1.0-2P 6V 3V ~ 7V 90 1000 CW



Introduction



The N20 Reduction Gear Motor is a low-power reduction motor with a D-shaped output shaft, suitable for applications requiring continuous rotation of objects. This motor offers three speed options, including a low-speed version (150rpm), a medium-speed (400rpm), and a high-speed (1000rpm). The motor can be connected to the Power Distribution Board (PDB) with 4 Channels using the Wire Pair with SH1.0-2PIN-5CM/10CM/20CM.


    In the box

    Item Qty

    N20 Reduction Gear Motor

    1

    Wire Pair with SH1.0

    1



    Considerations


    • Please use a power supply within the working voltage range.

    • Avoid immersing the motor in water or getting the motor wet.

    • Use screws of the appropriate length to secure the gearbox to prevent thread slippage or damage to the gearbox from screws touching the gears.

    • When using glue/adhesive to fix the motor, to prevent damage, do not let the glue/adhesive seep into the gearbox, shaft, or motor interior.

    • Regularly add a small amount of lubricant/grease to the gearbox to improve its lifespan and reduce noise.
