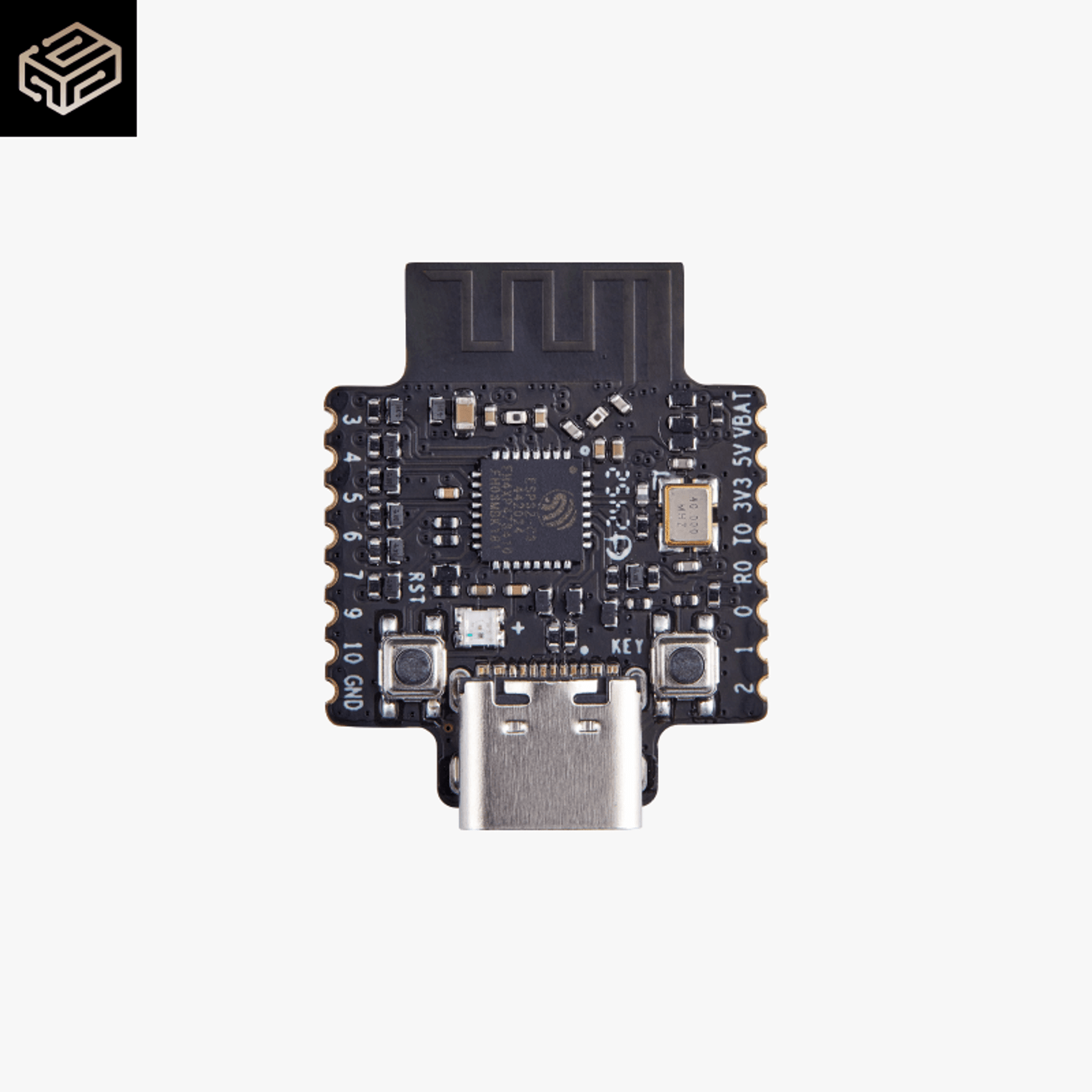

Multi-Function Core Board (1PCS)
$7.29 CAD
This versatile controller is specially designed for a wide range of CyberBrick projects, featuring built-in Bluetooth and Wi-Fi. It supports quick connection and disconnection via dual-pin headers, making it easy to switch between different expansion boards. When paired with various expansion modules, it enables applications such as remote control toys, 3D printer time-lapse photography, and many more.
Quantity:
Order Info
- Order will be shipped out from CA warehouse in 1-3 business days once being processed.
- Free shipping on orders over CAD $60.
Introduction
You can pair this product with either the Remote Control Receiver Shield or the Remote Control Transmitter Shield to serve as the receiver or transmitter component in RC projects. Additionally, by combining it with the Time-lapse Expansion Board, you can create a time-lapse photography module for Bambu Lab 3D printers.
Can be combined with the Official R/C Combo Kits
Remote Control Toys
Time-lapse Photography
Product Specifications
| Item Number | Component | Description |
| 1 | WS2812LED | RGB system status indicator |
| 2 | Stamp Cut | Solderable pinout |
| 3 | Reset Button | Press to reset the main program |
| 4 | Type-C Port | Burning firmware & programming |
| 5 | User Buttont | Custom function |
| 6 | Pin Header | Connectable with various shield |
| 7 | Orientation Mark | Ensure proper installation alignmen |
|
Product ID
|
Model
|
Type-C Input Voltage | VBAT Input Voltage | Antenna Type | Remote Control Distance | Weight | Size |
|
XA003
|
Core A11 | DC 5V | 3.7V~12.6V | PCB Antenna | Up to 100m (in open space) | 6g | 27*22mm |
Documentation
Notice: For security and stability, the CyberBrick Multi-Function Core Board only supports firmware updates through official tools.
Flashing with third-party tools is not supported and may cause irreversible damage, which is not covered by warranty.
Please use only official tools for any firmware operations. Thank you for your understanding!
